      20” Series 2000 DD

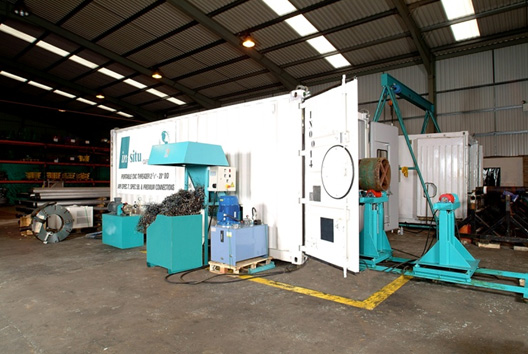

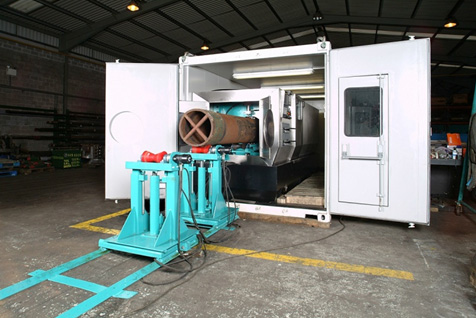

    • Standard 20” ISO container Fully insulated and fitted out to In-Situ spec.
    • Standard 20” Series 2000 DD machine.
    • Fanuc 0i-TD Series control mounted in a custom pendant.
    • Fanuc Screen display function with remote access.
    • CE marked Rittal enclosure housing all control gear and associated equipment.
    • Harsh environment Type 4 Air conditioner for Rittal enclosure.
    • Dehn Lighting current surge arrester to mitigate the effect of lighting.
    • In-Situ Rotating head with CNC controlled X Axis movement to allow turning operations on stationary pipe.
    • 22kw Fanuc AC Spindle motor.
    • Z Axis linear movement by three precision preloaded linear bearings.
    • Dual preloaded precision ball screws on Z Axis.
    • X axis Pulse Coder feedback (Semi Closed Loop)
    • Z axis Pulse Coder feedback (Semi Closed Loop)
    • In-Situ 4 Jaw Chuck 21” through bore.
    • In-Situ 3 Jaw Chuck with 12” through bore.

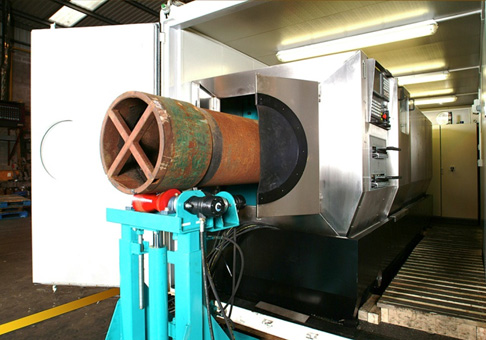

    • Vee type adjustable rear pipe steady which provides for repeatable alignment of pipe during batch runs.
    • Pipe handling system to feed 2 3/8” – 20” pipe.
    • Hydraulic power pack to suit.
    • Fully integrated coolant system.
    • Through spindle coolant.
    • Swarf conveyor./li>
    • Completely enclosed machine guarding, operator sliding access door with safety interlock system.
