A combination inspection unit that incorporates both full length Ultrasonic and EMI technologies for those that require the best from each technology as offered by Eurotechnology, customised to suit the client’s requirement
1. Inspection of Casing, Tubing, Line Pipe and Drill Pipe
2. Size range from 2 3/8” through 13 3/8” OD
3. Full Length ultrasonic inspection for longitudinal, transverse and oblique.
4. 100% Ultrasonic wall thickness measurement .
a. EMI full length wall is also available if client requires both measurement sources
5. Up to 50 channel data acquisition resulting in a higher production rate
6. EMI: longitudinal, transverse and three dimensional
7. Unit customised as a fully portable in a container or installed in facility structure provided by Eurotechnology or the client.
Description
- Inspection of Casing, Tubing, Line Pipe and Drill Pipe
- Size range from 2 3/8” through 13 3/8” OD
- Size range from 2 3/8” through 20” OD
- Full Length ultrasonic inspection for longitudinal, transverse and oblique.
1. 100% Ultrasonic wall thickness inspections to opposed to average wall loss

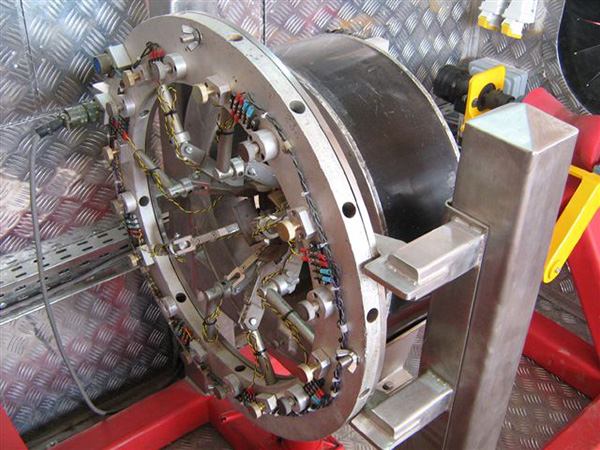

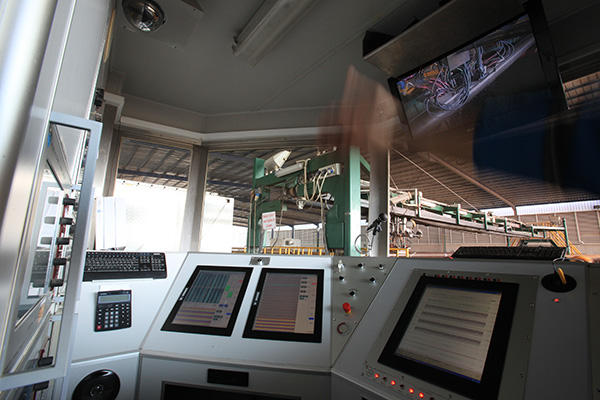

2. 50 channel data acquisition, faster production throughput - Rotating head EMI system complete with control cabin complete with data recording, conveyors,
1. EMI Transverse and three dimensional Inspection
2. EMI Longitudinal Inspection
3. EMI Grade differential
- Calibration joints, please specify size and length

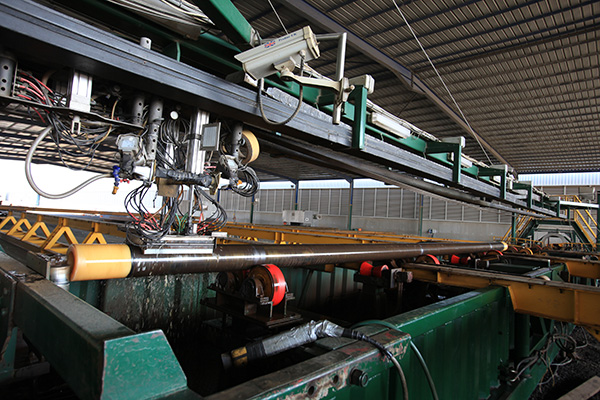

- Loading, transfer and offloading racking systems designed to suit customers’ needs
- Specify Power requirement
1. Generator power can be quoted if mains power are not available or back up power source required
- Calibration joints, please specify size and length
- Power pack and hoses
- Specify Power requirement
1.Generator power can be quoted if mains power are not available or back up power source required - Optional Blacklight / MPI containerised unit for end area inspection that is incorporated in to the finishing racks with aperture to allow tubulars to enter cabin for inspection no use of canopy by operator required. Complete with dual hydraulically operated pop up rollers to allow ease of end area inspection. Unit is designed to accommodate both range 2 and range 3 tubulars
- Internal cleaning of the tubular utilising high pressure water jetting option available
- External full length rotary wire brushing of tubular option is also available which would be built into the entry rack before inspection of the tube
- Does not include inspection tools / equipment as requirements by clients differ. Comprehensive listing would be developed based on customers inspection requirement and configuration
- Repair tools, spare parts and consumables recommendation for period as agreed with client taking into consideration location and operational environment
