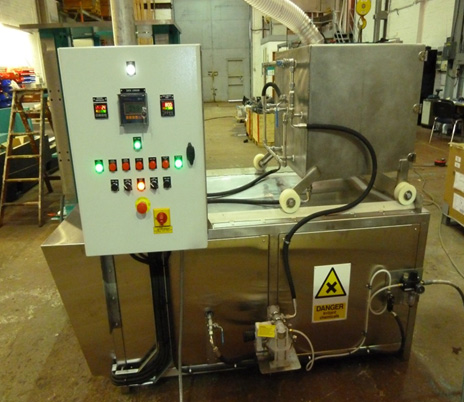

- Rittal Steel Enclosure 500w x 700h x250d mm IP 56 Rated.
- 63A 3Pole Isolator.
- Eurotherm 3216 1/16 Din Temperature Controller.(Dual Display)
- Cycle Timer 4 Digit 2 Line with cycle Hold time.
- 7 Day 24Hour Event Timer.
- Power On LED white indicator.
- Emergency Stop Pushbutton 2 off( 1 Local , 1 Remote)
- Emergency Stop Dual Channel Safety Relay.
- Emergency Stop Activated LED.
- Illuminated Red Cycle Stop pushbutton
- Illuminated Green Cycle Start Pushbutton.
- Cycle Time Hold Pushbutton-Black.
- 2 Position selector switch for Auto/Man.
- 2 off Contactor 15Kw AC3 rating.
- MCB Circuit Breaker for Both Elements.
- Remote Start/Stop/E-stop
- 415/110Vac 200VA Control Transformer.
- 1 off Type K Stainless Steel Thermocouple 500mm Length( For Temperature Controller)
- 4 way Remote Pushbutton Station for E-stop, Cycle Stop, Cycle Start and Power on

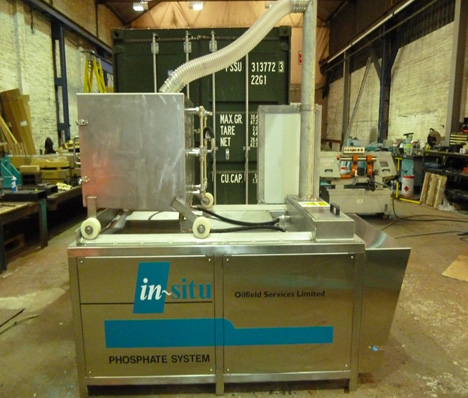

Phospating Unit Details:
Torque MakeupUnit
