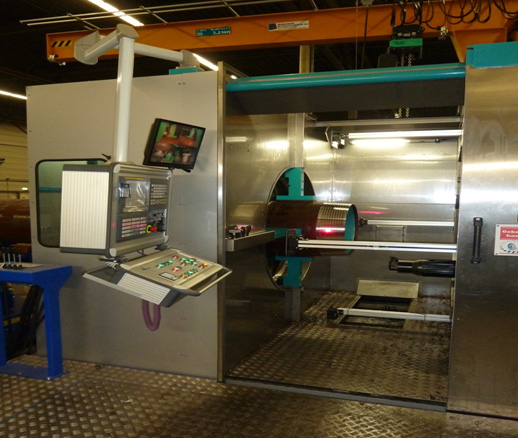

      48” Series 1200 XL


    • Based on our Standard 48” Series machine.(Machining Capacity 20”-48”)
    • Fanuc 32i-B Series control mounted in a custom pendant.
    • Fanuc Handy Operators panel (HMOP)

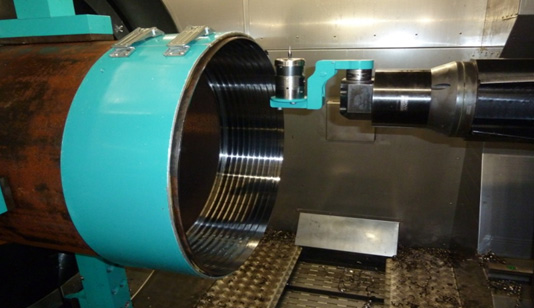

    • Rotating head with CNC controlled X Axis movement to allow turning operations on stationary pipe.
    • In-Situ CNC Controlled “V” type roller mechanism, utilising our Patented “Pendleslide” technology for pipe alignment.
    • In-Situ standard 8 Jaw chucking system with Servo controlled Front 4 Jaw chucking system with special high axial contact jaws and hydraulic activated rear Jaws.
    • CNC control Auto-Alignment and clamping via Custom Fanuc Picture screen.
    • 60kw Fanuc AC Spindle motor.
    • 2 Stage(Coolant and Air) rotary union combined electrical slip ring for X Axis feedback device.
    • 4 off High precision laser devices for Non-Contact measurement of pipe diameter during alignment process.
    • 4 off Servo Controlled linear slide mechanisms to advance and retract laser devices during alignment process.
    • Z Axis linear movement by four precision preloaded linear bearings (Increased from three)
    • Dual preloaded precision balls crews on Z Axis.
    • Heidenhain® Scale feedback on Z Axis (Fully closed Loop) with Dual position Feedback.
    • Renishaw Resolute® RSLA feedback on X Axis(Fully closed loop) with Dual position Feedback.
    • Renishaw RMP60 probe with radio receiver fully interfaced with the 32i-B control and subsequent remote PC.
    • Mayr Electro/mechanical brake for C axis clamping use during probing cycles.
    • Rittal enclosure housing all control gear and associated equipment.
    • Hydraulic power pack to suit.
    • Fully integrated coolant system with paper band filter system.
    • Through spindle coolant.
    • Swarf conveyor.

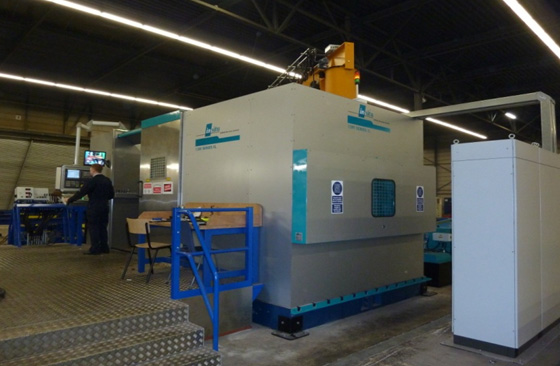

    • Completely enclosed machine guarding, operator sliding access door with safety interlock system.
    • Fanuc Screen display function with remote access.
